EP1220

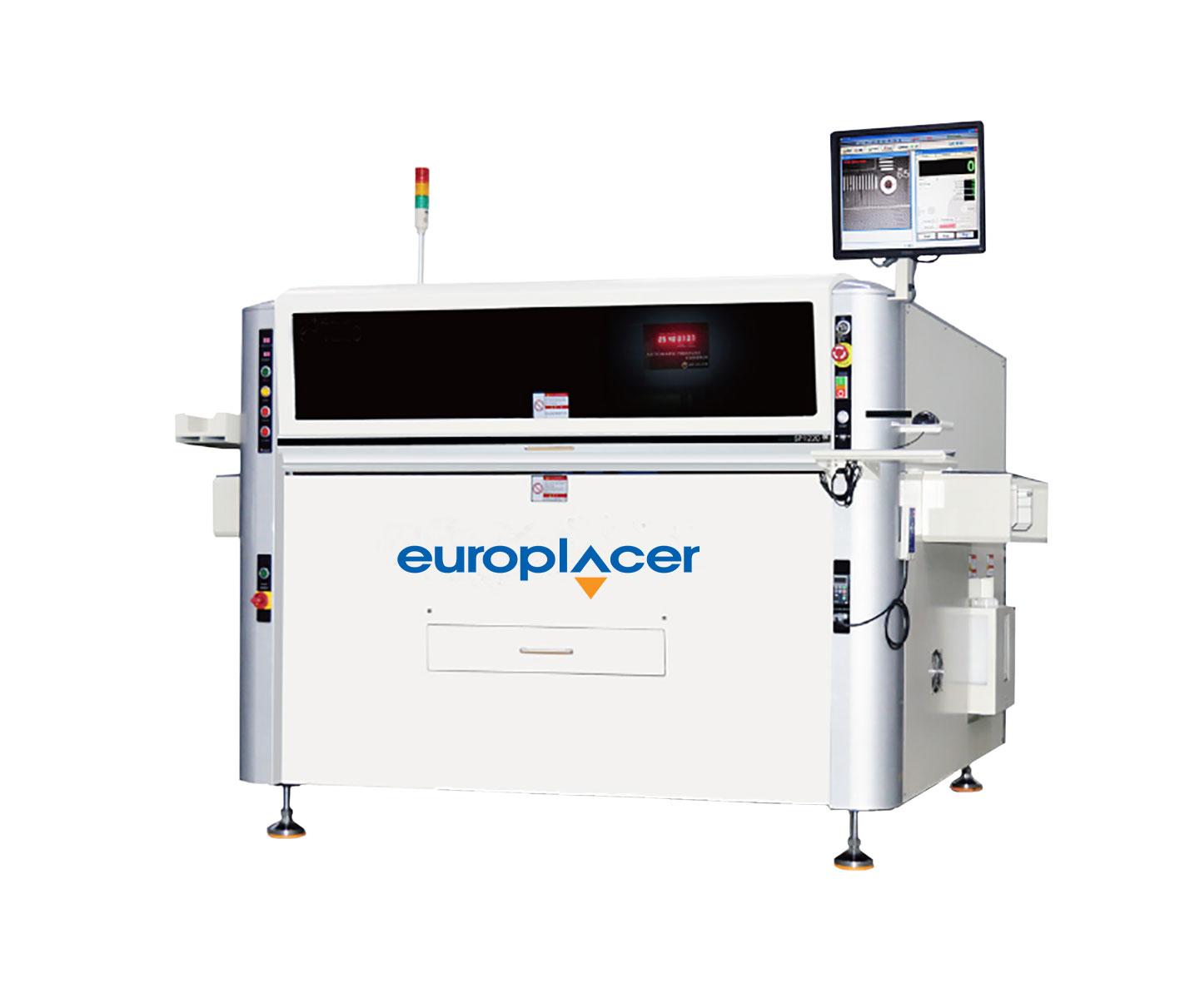

Long Board Screen Printer

The EP1220 handles boards up to 48″ (1220mm) long and 20″ (508mm) wide, ideal for LED lighting applications.

The long board printer delivers print accuracy to 12.5µm at 6-sigma and use four fiducials to optimise alignment, paralleling the repeatability performance of our EP700 series platforms.

Integrated Intelligence

Unparalleled Support

Long Board Screen Printer

The EP1220 long board screen printer handles boards up to 48″ (1220mm) long and 20″ (508mm) wide, ideal for LED lighting applications.

The screen printer has an accuracy of 12.5µm at 6-sigma and uses four fiducials to optimise alignment across the large board area – a factor that becomes increasingly critical with long PCBs.

The machine also features in-built Solder Paste Inspection (SPI) technology for added process reassurance.

Stencil Cleaning

The long board printer deploys an inventive under-stencil cleaning system that operates in the X-axis to minimise the usage of cleaning consumables.

Automation

Advanced automation is at the very centre of our long board screen printer platforms.

The EP1220 features laser-guided manual support pin positioning as standard, and fully automatic tooling pin placement as an option.

Inspection

SPI technology is built in to the EP1220 machines, giving on-board 2D inspection capability for paste presence and bridge detection.

Durability – Quality Assurance

Our screen printers are refined, robust, design-optimised products built to last.

Be assured that EP1220 screen printers will perform identically in a decade as they do when new.

Features

Cycle times of 14 seconds
Board length up to 48″
+/-12.5µm accuracy @ 6-sigma
Closed loop squeegee pressure control
Inventive X-axis under stencil cleaning: wet/dry/vacuum
2-minute product changeover time
5-minute new product set up time
Top clamping standard. Side clamping (with vacuum) optional
2D SPI built in
Magnetic tooling support pins (laser-guided) as standard
Fully automatic tooling support option

Options and Accessories

A range of production and process options are available with the EP1220 long board screen printer, allowing you to implement additional efficiencies and controls within your printing process.
